CRM-100A common rail injector measurement system

CRM-100 Common Rail Injector Measurement System is designed to rebuild malfunctioned injectors to meet Bosch stage 3 repair standard,common rail injector measurement system.

Features

PC based control software
User friendly intuitive interface to direct the measurement procedure step-bystep
Provides the correct thickness of calibration shims to avoid the confused calculation by user Build-in database

Bosch automotive injectors, including CRI 1-2.0-2.2, CRI 2.1, CRI 3A, CRI 3B
Bosch truck injectors, including CRIN 1 and CRIN 2.
Free software upgrade
Electronic controller, C-BOX, function as
Data hub for communication between PC and micrometer
Controlled by the PC to generate electronic signal to drive injector for dynami
c armature lift
measurement
Made in Japan Mitutoyo micrometer, resolution 0.001mm
Complete tool sets to fulfill injector repairing tasks
Complete sets of calibration shim spear parts

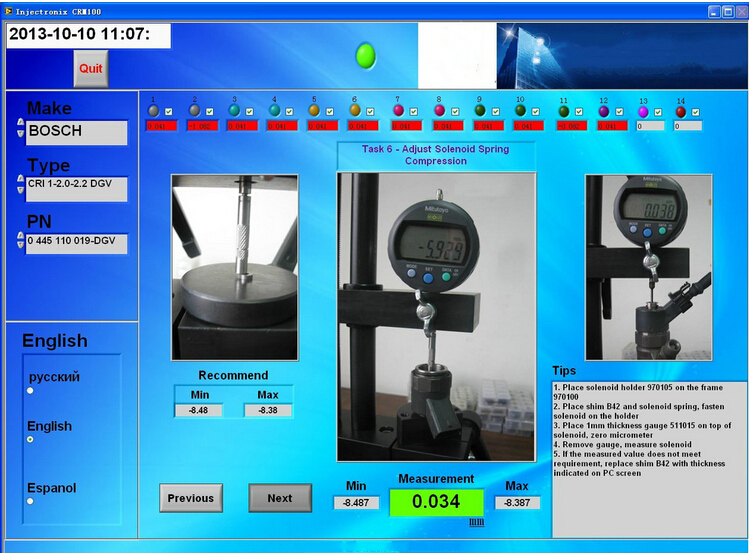

CRM-100 PC Windows Based Software

Multiple Languages
English
Spanish
Portuguese
Russian
intuitive, step-by-step instruction to direct user to rebuild injector
Measure thickness of calibration shims
Measure dimension of injector components
Provide the required thickness of calibration shims
Complete database to cover Bosch common rail injectors
CRI 1, CRI 2, CRI 3 for Automotive engine
CRIN 1, CRIN 2 for Commercial vehicle engine
